STRAINER 밸브

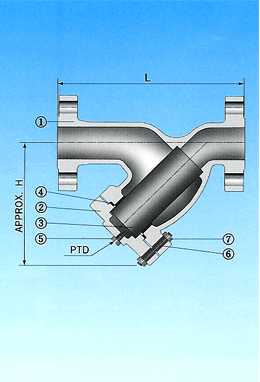

*PARTS OF MATERIAL
No
*PARTS NAME
*KS SPECIFICATIONS
REMARKS
STANDARD
CORROSION SERVICE
1
 *BODY
SCPH2
SSC13
SSC14
2
 *COVER
CSPH2
SSC13
SSC14
3
 *SCREEN
STS304
STS304
STS316
4
 *GASKET
COMMERCIAL
COMMERCIAL
COMMERCIAL
NOTE1
5
 *PLUG
SB50/SNB7
ST5304
STS316
6
 *COVER BOLT
SB50/SNB7
STS304
STS316
7
 *COVER NUT
SB41/SM45C
STS304
STS316
aNOTE 1. Gsdket material : customer's requirements

■ BC Y-STRAINER CLASS 20K
VALVE SIZE
mm
20
25
32
40
50
65
80
100
125
150
200
250
300
L(RF,FF)
*mm
160
210
220
235
250
290
310
390
440
520
610
760
892
H(VALVE HEIGHT)
*mm
75
97
110
117
140
180
210
270
310
370
490
565
650
PTD
*mm
3/8
3/8
3/8
3/8
3/8
3/8
1/2
1/2
3/4
3/4
3/4
1
1

■ BC Y-STRAINER CLASS 10K
VALVE SIZE
mm
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L(RF,FF)
 mm
140
160
180
191
220
270
290
350
390
440
540
680
840
1050
1060
H(VALVE HEIGHT)
 mm
75
85
105
110
130
180
200
240
260
320
380
480
600
840
890
PTD
 inch
3/8
3/8
3/8
3/8
3/8
3/8
1/2
1/2
3/4
3/4
3/4
1
1
1
1
