SWING CHECK 밸브

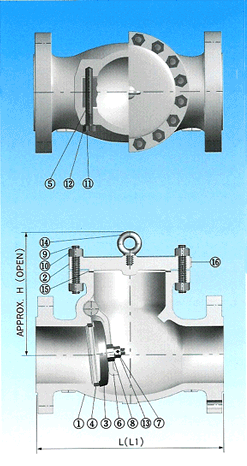

*PARTS OF MATERIAL

No	*PARTS NAME	*KS SPECIFICATIONS			REMARKS
No	*PARTS NAME	STANDARD	LOW TEMP, SERVICE	LOW TEMP, SERVICE	REMARKS
1	*BODY	SCPH2	SCPL1	SCPH32
2	*COVER	SCPH2	SCPL1	SCPH32
3	*DISC	SSC1	SSC13	SSC1
4	*SODY SEAT RING	S20C+HF/SF 45+HF	S20C+HF/SF 45+HF	S20C+HF/SF 45+HF	NOTE1
5	*HINGE PIN	STS410	STS304	STS410
6	*ARM	SCPH2	SCPL1	SCPH32
7	*DISC NUT	SM20C	STS304	SM20C
8	*WASHER	SM20C	STS304	SM20C
9	*COVER BOLT	SB50/SNB7	STS304B	SNB16
10	*COVER NUT	SB41/SM45C	SNB16	SNB16
11	*PLUG BOLT	SM25C	STS304	SM25C
12	*PLUG GASKET	COMMERCIAL	COMMERCIAL	COMMERCIAL
13	*SPLIT PIN	STS304	STS304	STS304
14	*EYE BOLT	SM25C	SM25C	SM25C
15	*GASKET	COMMERCIAL	COMMERCIAL	COMMERCIAL	NOTE2
16	*NAME PLATE	A1050P	A1050P	A1050P
aNOTE 1. Size 200A & larger : body material with trim material overlayed aaaaaa2. Gasket material : customer's requirments

■ DIMENSION

*CLASS

*SIMENSION / SIZE

50A

65A

80A

100A

125A

150A

200A

250A

10K	*L·FACE TO FACE (RF,FF)	203	216	241	292	330	356	495	622
	*L1·END TO END (BW)	203	216	241	292	330	356	495	622
	*H.VALVE OPEN HEIGHT	140	160	170	210	230	250	280	320
20K	*L·FACE TO FACE (RF,FF)	267	292	318	356	400	444	533	622
	*L1·END TO END (BW)	267	292	318	356	400	444	533	622
	*H.VALVE OPEN HEIGHT	160	170	185	230	270	295	345	390
40K	*L·FACE TO FACE (RF,FF)	292	330	356	432	508	559	660	787
	*L1·END TO END (BW)	292	330	356	432	508	559	660	787
	*H.VALVE OPEN HEIGHT	191	200	241	257	300	321	380	446
63K	*L·FACE TO FACE (RF,FF)	368	419	381	457	559	610	737	838
	*L1·END TO END (BW)	368	419	381	457	559	610	737	838
	*H.VALVE OPEN HEIGHT	200	230	250	290	320	330	410	465

■ DIMENSION

*CLASS

*SIMENSION / SIZE

300A

350A

400A

450A

500A

600A

200A

250A

10K	*L·FACE TO FACE (RF,FF)	698	787	864	978	9778	1295
	*L1·END TO END (BW)	698	787	864	978	978	1295
	*H.VALVE OPEN HEIGHT	330	395	450	530	570	670
20K	*L·FACE TO FACE (RF,FF)	711	838	864	978	1016	1346
	*L1·END TO END (BW)	711	838	864	978	1016	1346
	*H.VALVE OPEN HEIGHT	445	470	510	545	600	690
40K	*L·FACE TO FACE (RF,FF)	838	889	991	1092	1194	1397
	*L1·END TO END (BW)	838	889	991	1092	1194	1397
	*H.VALVE OPEN HEIGHT	470	552	673	705	751	800
63K	*L·FACE TO FACE (RF,FF)	965	1029	1130	1219	-	-
	*L1·END TO END (BW)	965	1029	1130	1219	-	-
	*H.VALVE OPEN HEIGHT	520	580	698	722	-	-
