*Body
|
SCS＊CF＊
|
|
*Bonnet
|
SCS＊CF＊
|
|
*Stem
|
SUS＊
|
|
*Disc
|
SCS＊CF＊
|
|
*Gland
|
SCS13
|
|
*Gland
Packing
|
TEFLON.ASBESTOS
|
|
*Gasket
|
TEFLON.ASBESTOS
|
|
*Yoke
Sleeve
|
BC6.DCI
|
|
*Yoke
|
SCS13
|
|
*Handwheel
|
DCI
|
|
*Gland
Bolt/Nut
|
SUS 304
|
|
*Gland
Bolt Pin
|
SUS 304
|
|
*Gland
Bolt/Nut
|
SUS 304
|
|
*Grease
Nipple
|
BC
|
|
*Name
Plate
|
AL
|
|
|
|
| |
| |

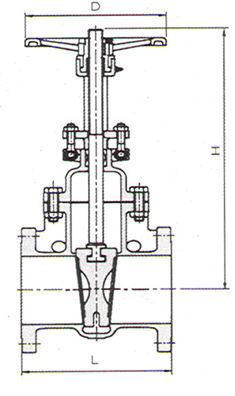

| Size
|
in
|
½
|
¾
|
1
|
1¼
|
1½
|
2
|
2½
|
3
|
4
|
5
|
6
|
8
|
10
|
|
mm
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
|
10K
150LB |
L
|
108
|
117
|
127
|
140
|
165
|
178
|
190
|
203
|
229
|
254
|
267
|
292
|
330
|
|
H
|
195
|
195
|
230
|
255
|
270
|
320
|
370
|
430
|
525
|
635
|
730
|
890
|
1125
|
|
D
|
100
|
100
|
125
|
125
|
180
|
180
|
200
|
200
|
240
|
280
|
280
|
320
|
400
|
|
|
| |
| Size
|
in
|
12
|
14
|
16
|
18
|
20
|
24
|
|
|
mm
|
300
|
350
|
400
|
450
|
500
|
600
|
|
|
10K
150LB |
L
|
356
|
381
|
406
|
432
|
457
|
506
|
|
|
H
|
1327
|
1550
|
1690
|
1890
|
2100
|
2460
|
|
|
D
|
400
|
550
|
550
|
550
|
550
|
600
|
|
|
| |
| |
