*Body
|
SCS＊CF＊
|
|
*Bonnet
|
SCS＊CF＊
|
|
*Stem
|
SUS＊
|
|
*Disc
|
SCS＊CF＊
|
|
*Gland
|
SCS13
|
|
*Gland
Packing
|
TEFLON.ASBESTOS
|
|
*Gasket
|
TEFLON.ASBESTOS
|
|
*Yoke
Sleeve
|
BC6.DCI
|
|
*Yoke
|
SCS13
|
|
*Handwheel
|
DCI
|
|
*Gland
Bolt/Nut
|
SUS 304
|
|
*Gland
Bolt Pin
|
SUS 304
|
|
*Gland
Bolt/Nut
|
SUS 304
|
|
*Grease
Nipple
|
BC
|
|
*Name
Plate
|
AL
|
|
|
|
| |
| |
| Size
|
in
|
½
|
¾
|
1
|
1¼
|
1½
|
2
|
2½
|
3
|
4
|
5
|
6
|
8
|
10
|
|
mm
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
|
20K
300LB |

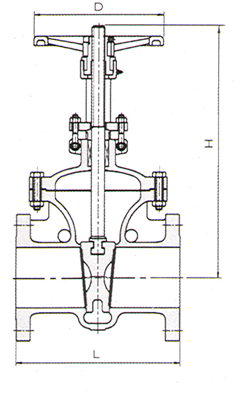

L
|
108
|
117
|
127
|
140
|
190
|
216
|
241
|
283
|
305
|
381
|
403
|
419
|
457
|
|
H
|
195
|
195
|
230
|
255
|
290
|
357
|
412
|
475
|
550
|
626
|
753
|
968
|
1170
|
|
D
|
100
|
100
|
125
|
125
|
180
|
200
|
200
|
240
|
280
|
320
|
320
|
400
|
400
|
|
|
| |
| Size
|
in
|
12
|
14
|
16
|
18
|
20
|
24
|
|
mm
|
300
|
350
|
400
|
450
|
500
|
600
|
|
20K
300LB |
L
|
502
|
762
|
838
|
914
|
991
|
506
|
|
H
|
1340
|
1671
|
1880
|
2150
|
2510
|
2460
|
|
D
|
400
|
600
|
600
|
700
|
800
|
600
|
|
| |
| |
